Final Render

Research:
An investigation into Traditional Japanese Joinery and the different types of joints which can be used in timber contraption, analysing the way that they can be modelled digitally as well as on equipment such as the laser cutter and CNC machine.
Proposal:
A Japanese Table inspired by the latticework at the The Carpenters Line Exhibition at Japan House in Kensington, London.
The CNC machine and research into timber joints heavily informed the design and construction of each element.
Skills:
Rhino
CNC Machine
Laser Cutting
3D Printing

The Inspiration

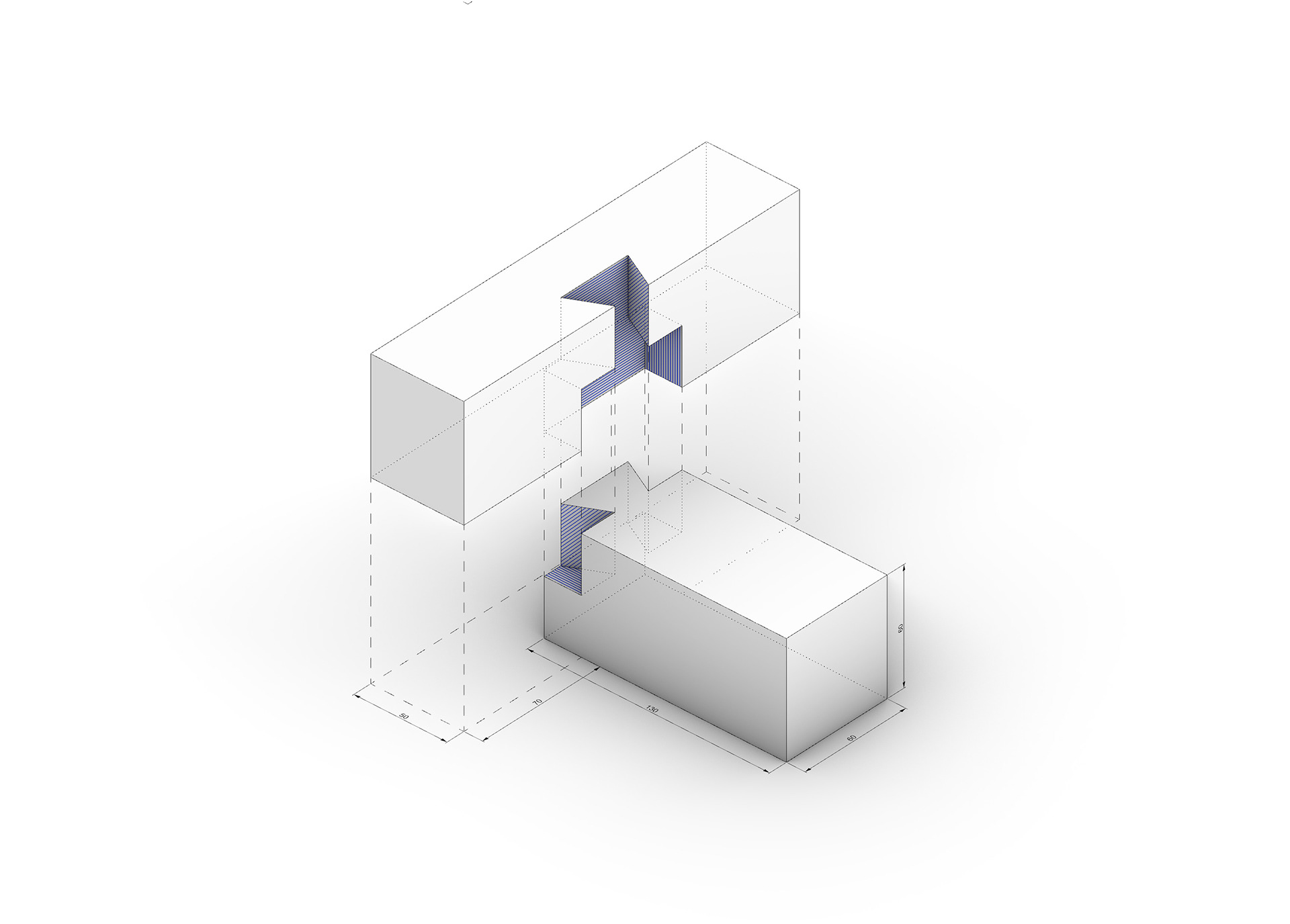

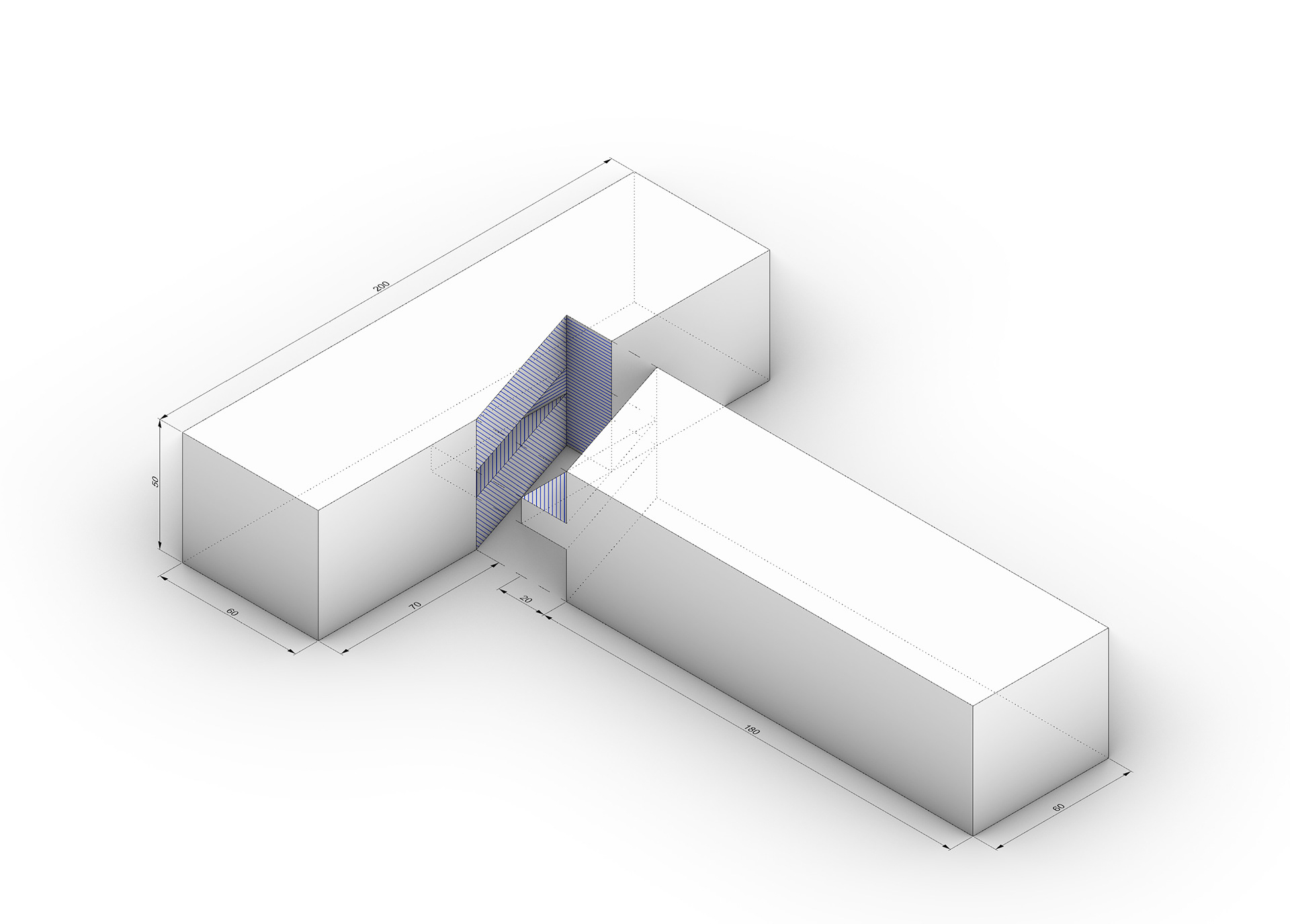

Compound Joint - Exploded Isometric
Compound Joint - Exploded Isometric
Dovetail Joint - Exploded Isometric
Dovetail Joint - Exploded Isometric

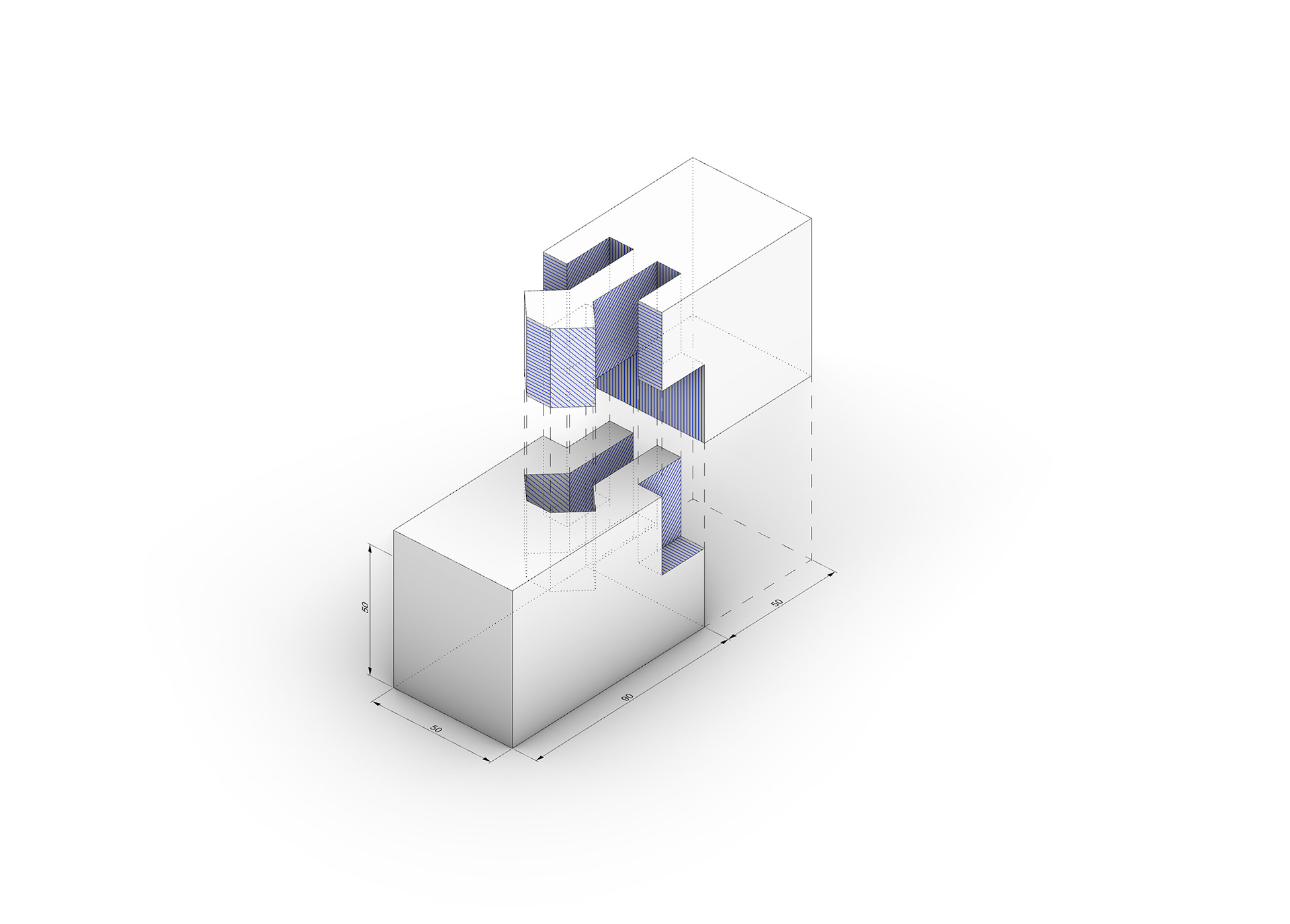

Interlocking Joint - Exploded Isometric
Interlocking Joint - Exploded Isometric

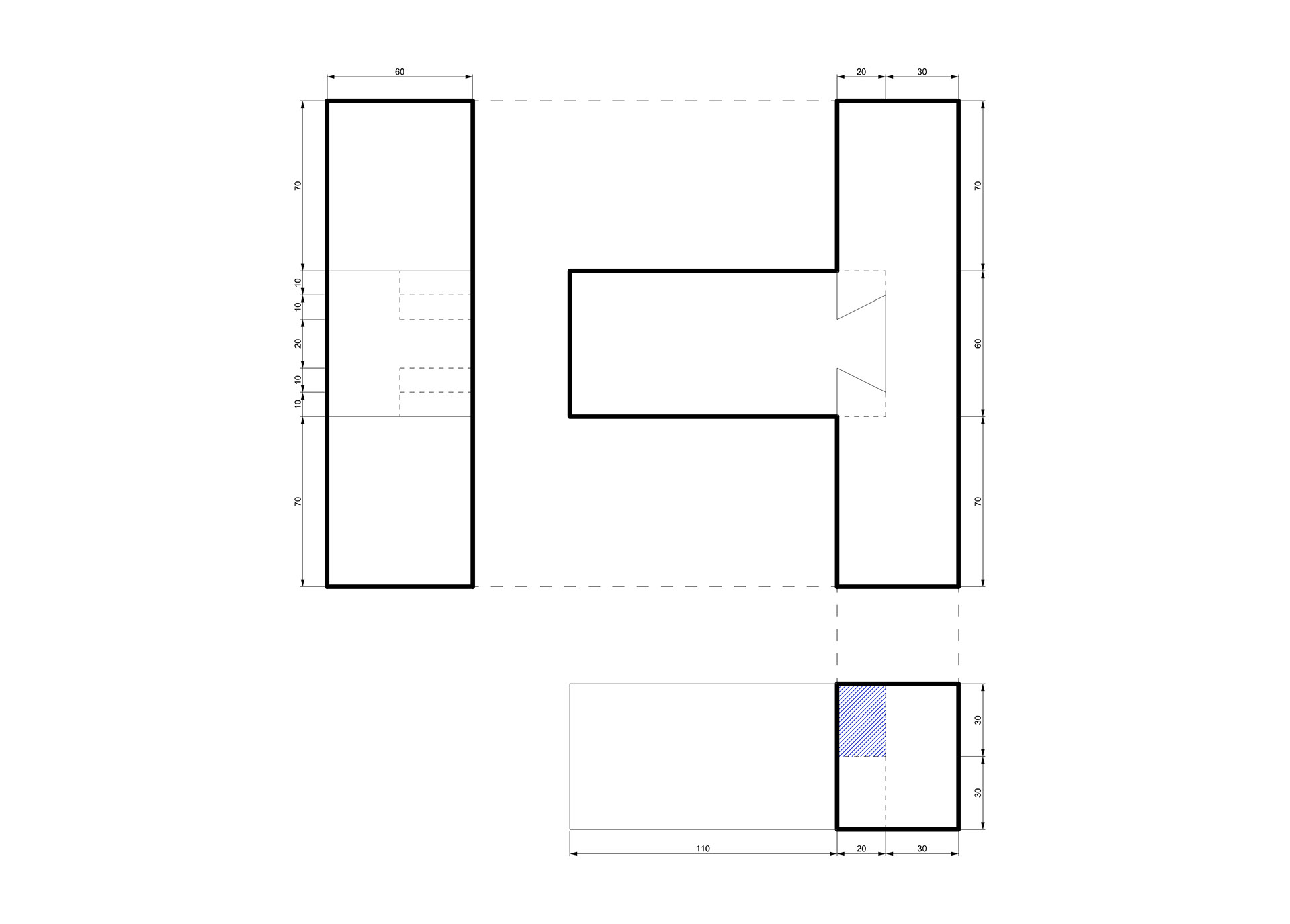

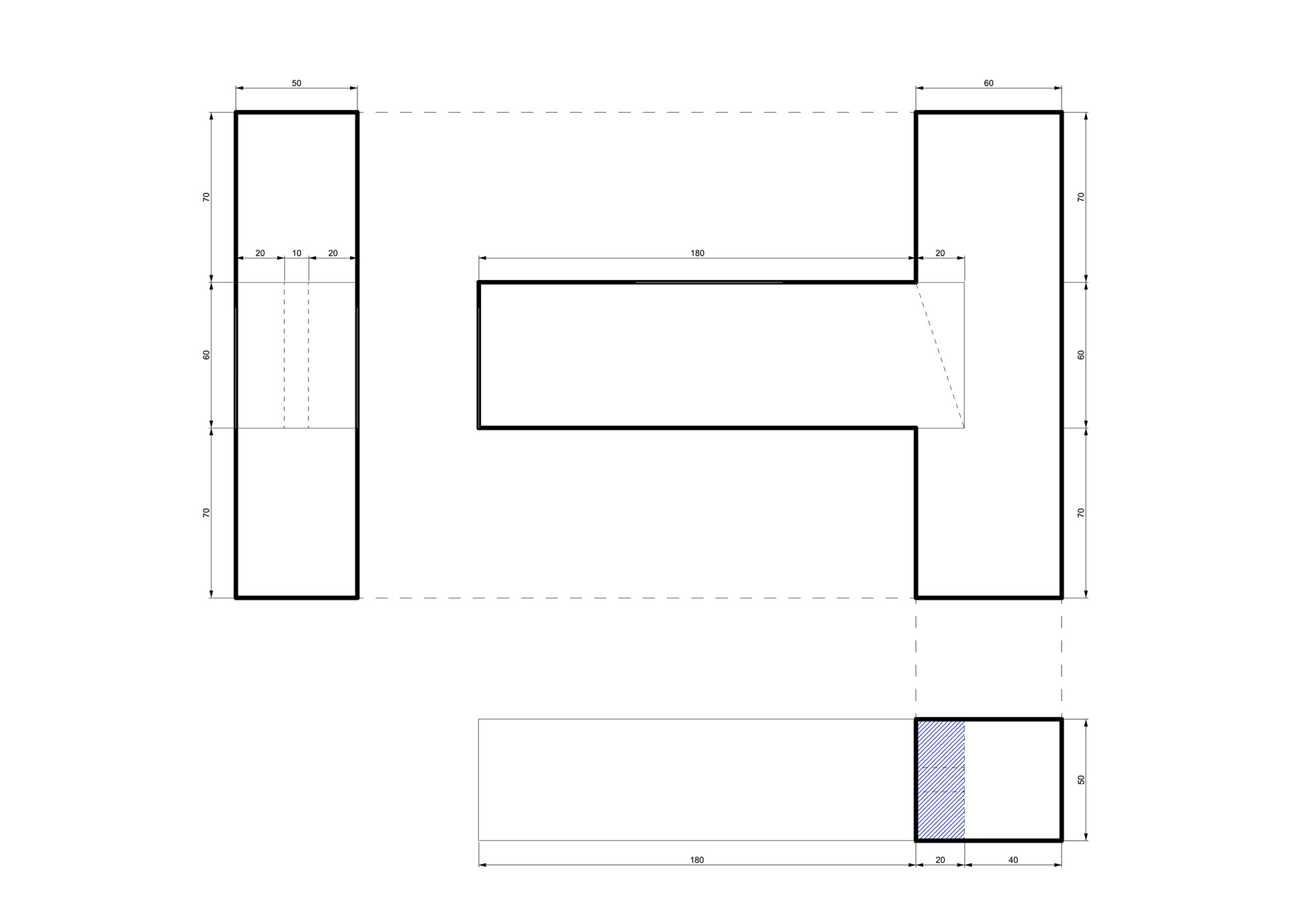

Compound Joint - Orthographic
Compound Joint - Orthographic

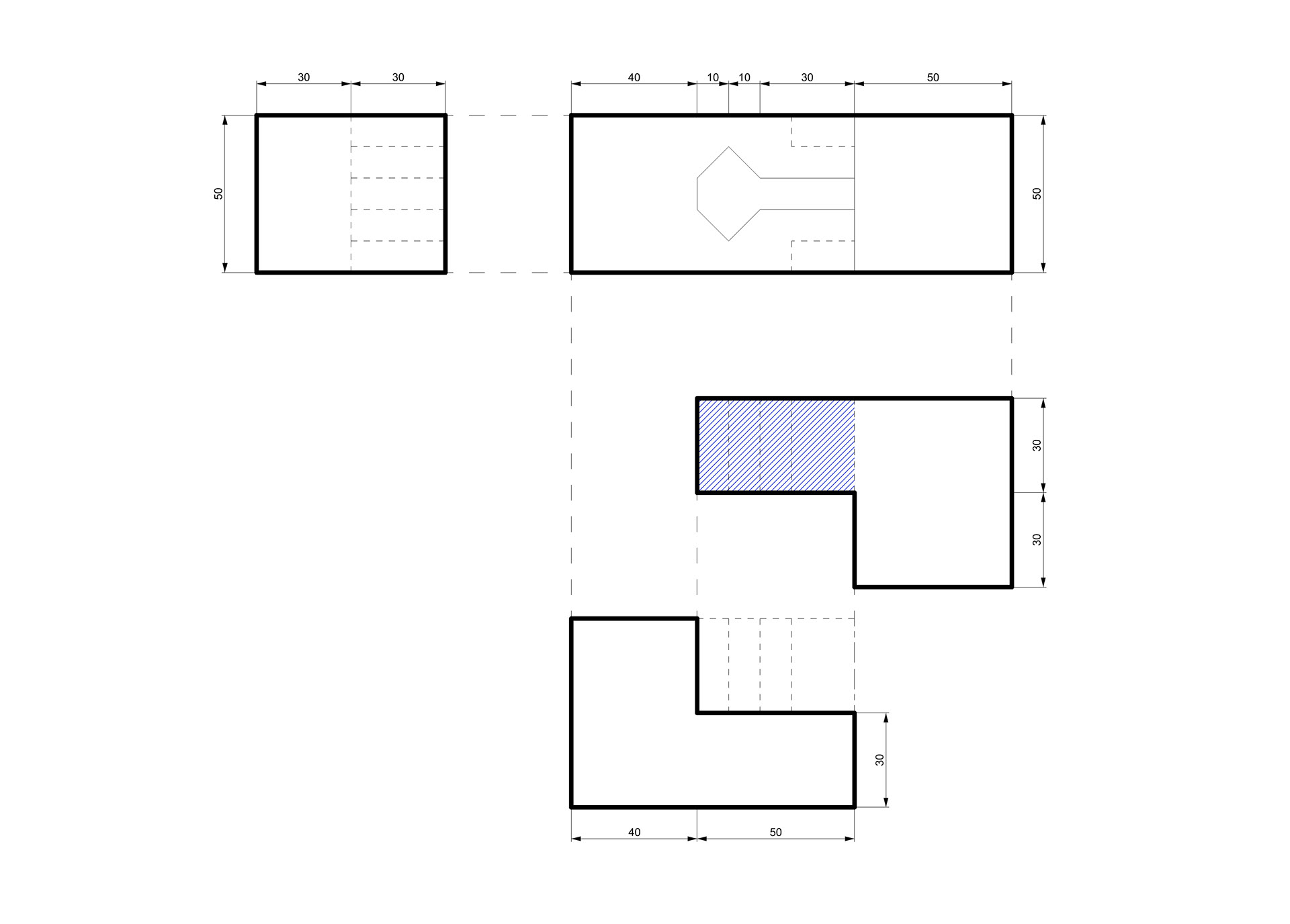

Dovetail Joint - Orthographic
Dovetail Joint - Orthographic
Interlocking Joint - Orthographic
Interlocking Joint - Orthographic

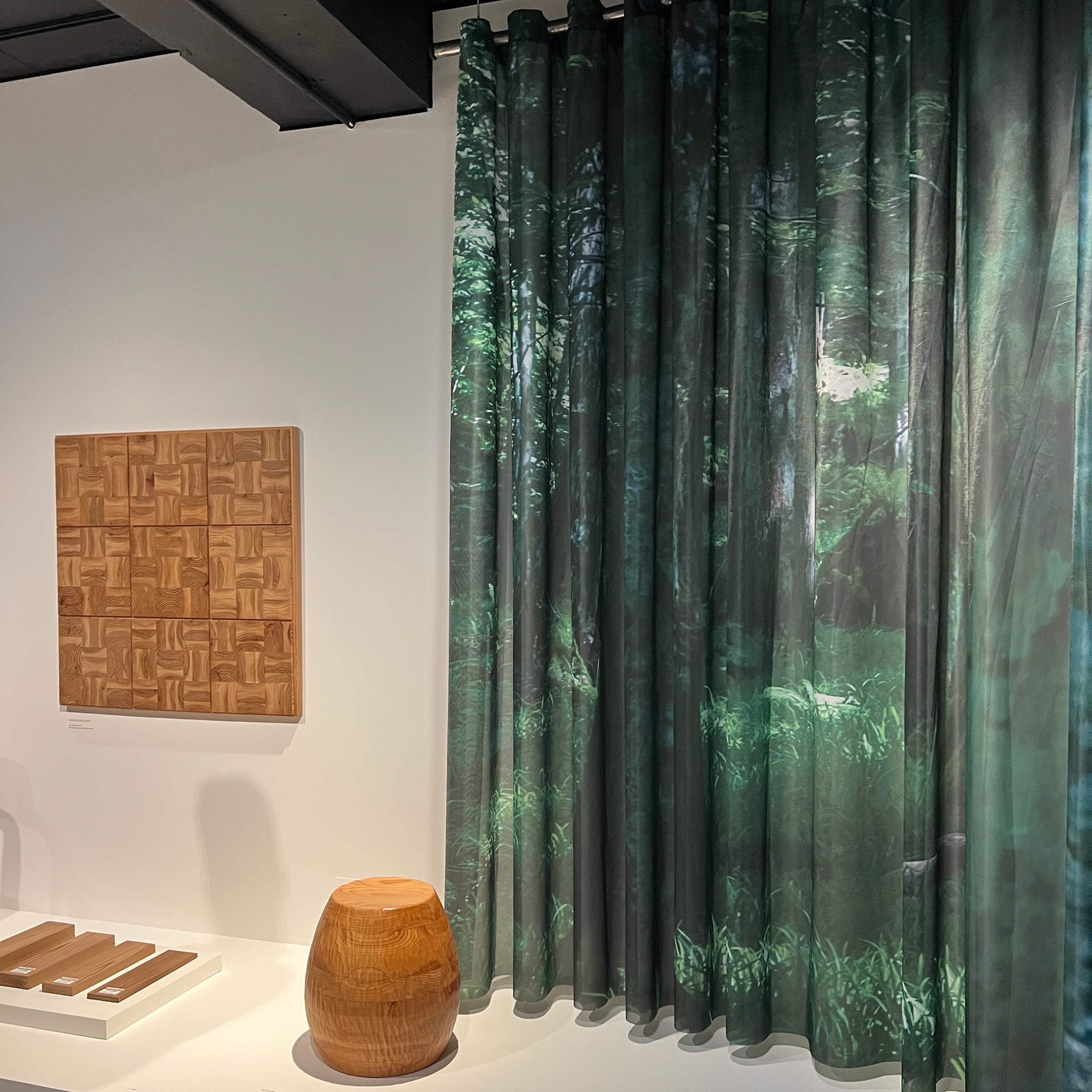

The Carpenters Line Exhibition - Japan House

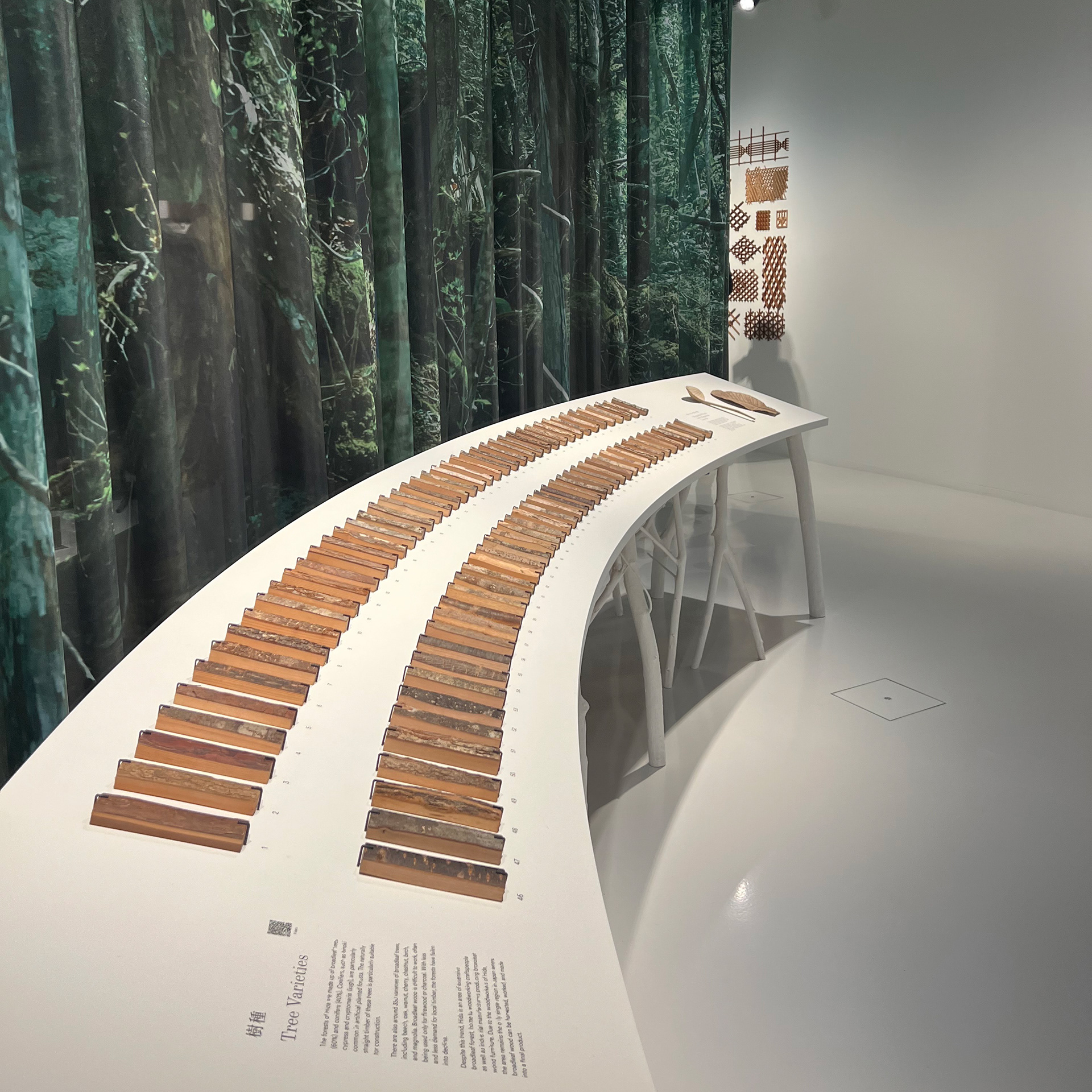

Range of Timber
Range of Timber
Detailed Latticework
Detailed Latticework
Timber Joinery
Timber Joinery
The Proposal

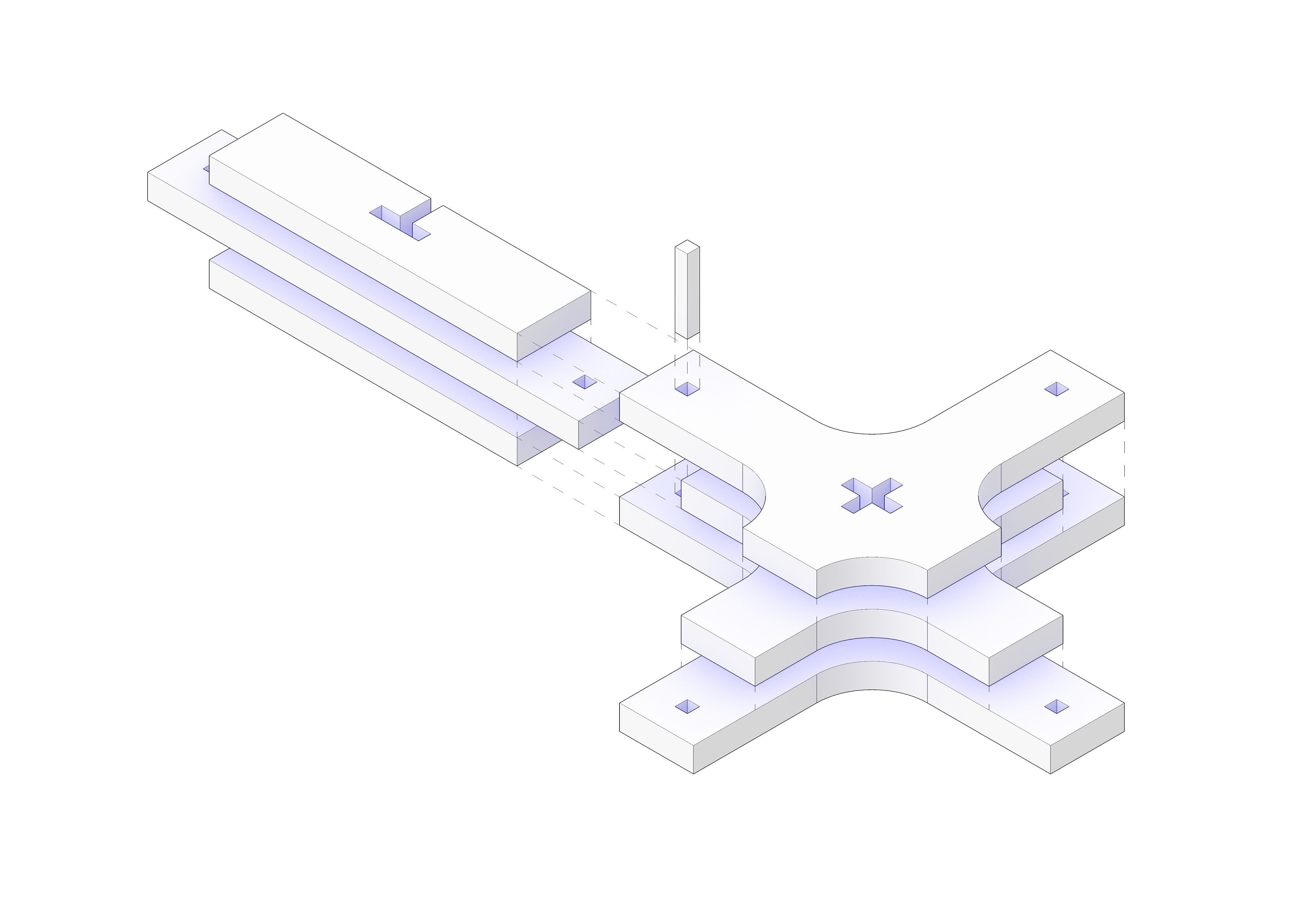

Element 01 - Node to Corner
Element 01 - Node to Corner

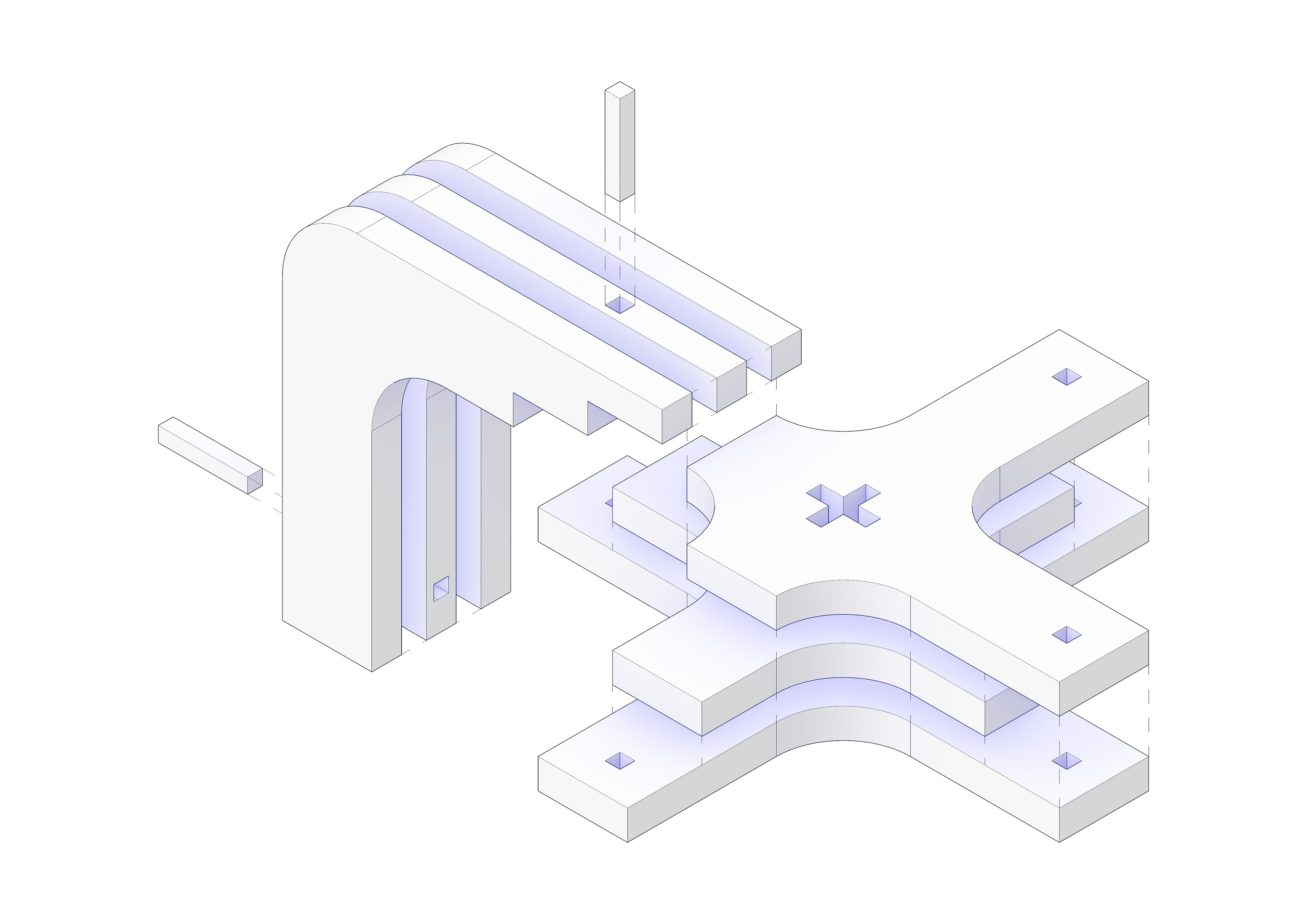

Element 02 - Node to Side
Element 02 - Node to Side
Element 03 - Central Top
Element 03 - Central Top

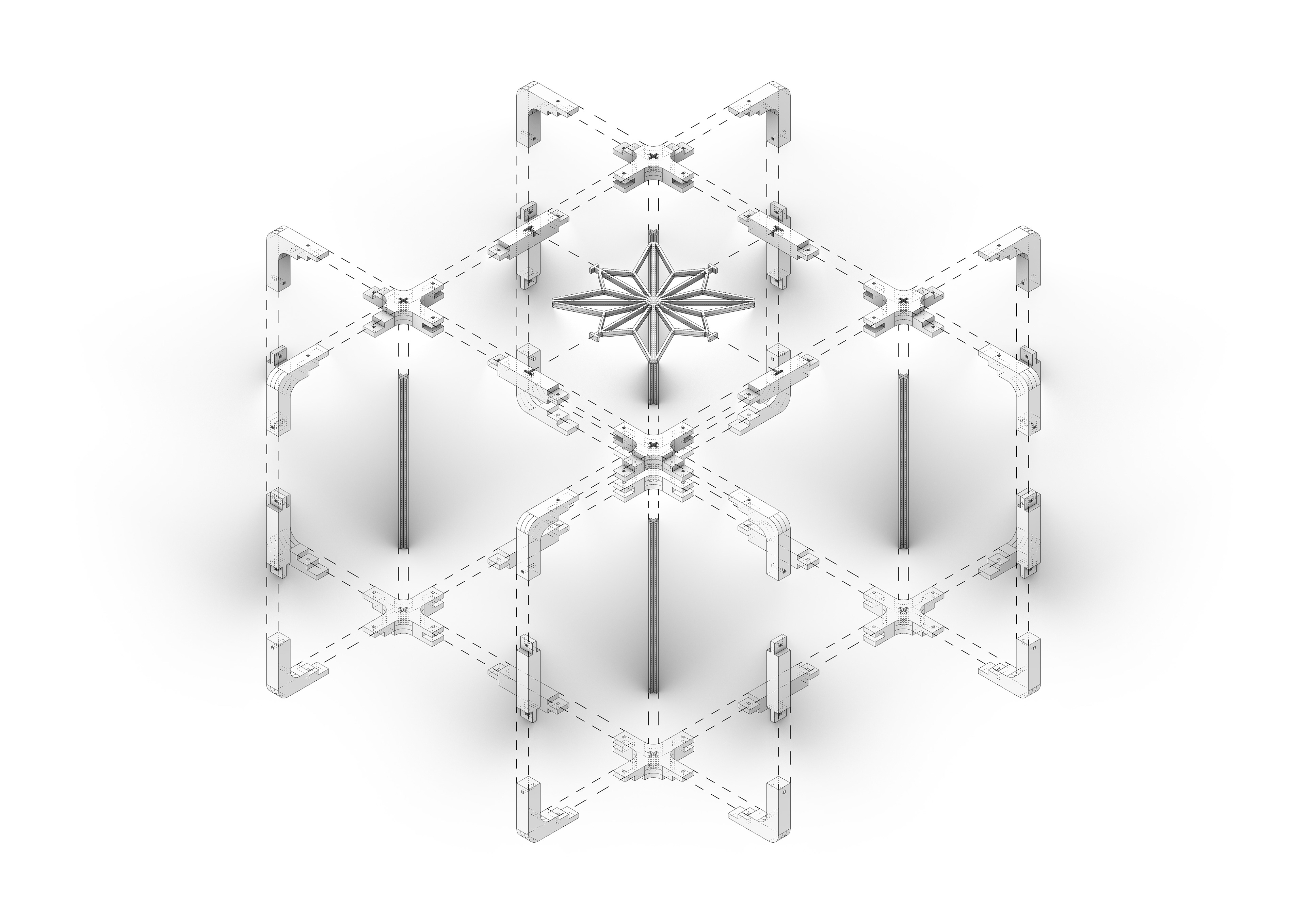

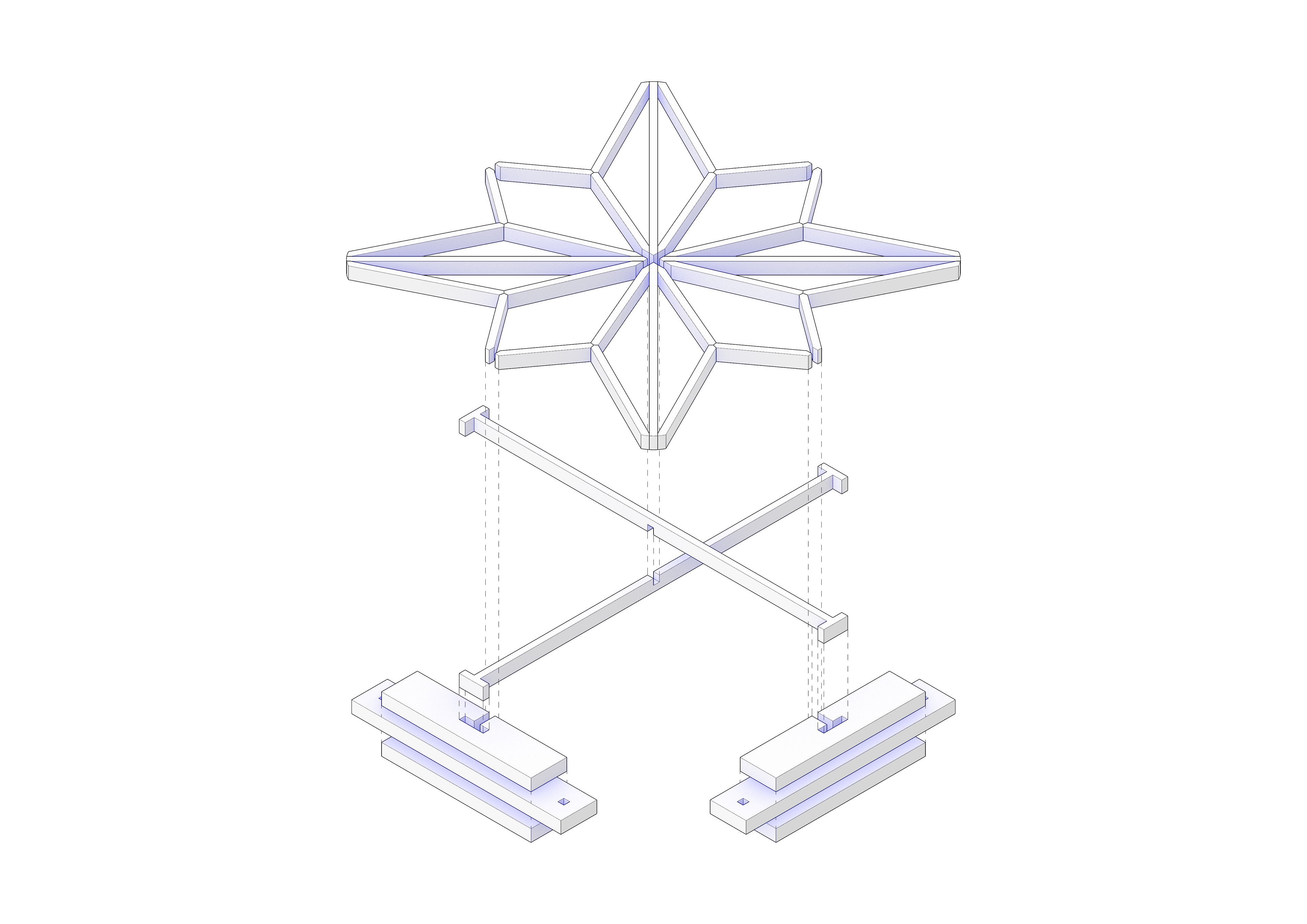

Final Design - Exploded Axonometric
Final Design - Exploded Axonometric
Final Design - Isometric Drawing
Final Design - Isometric Drawing

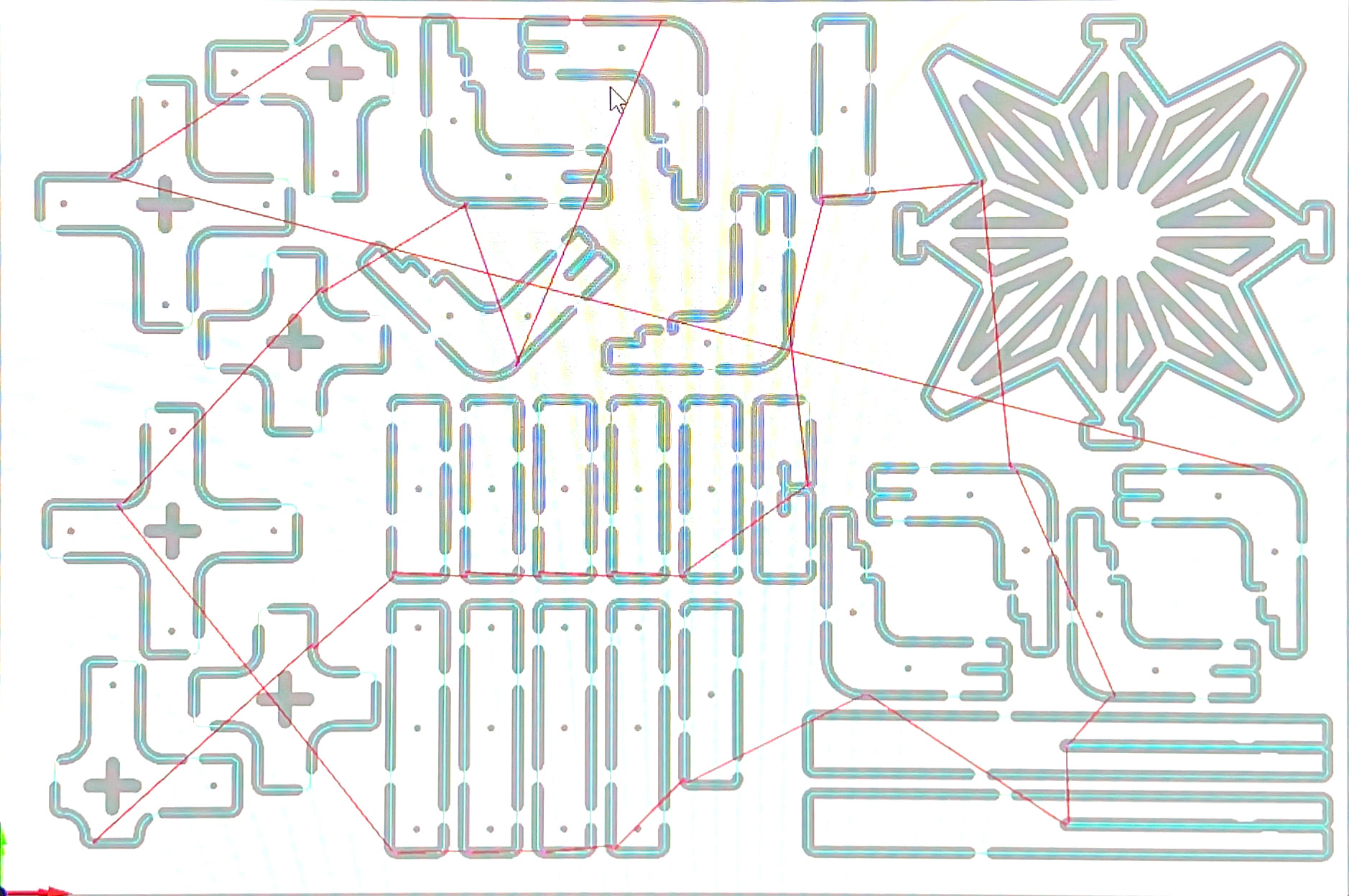

CNC Machine - Set Up
CNC Machine - Set Up

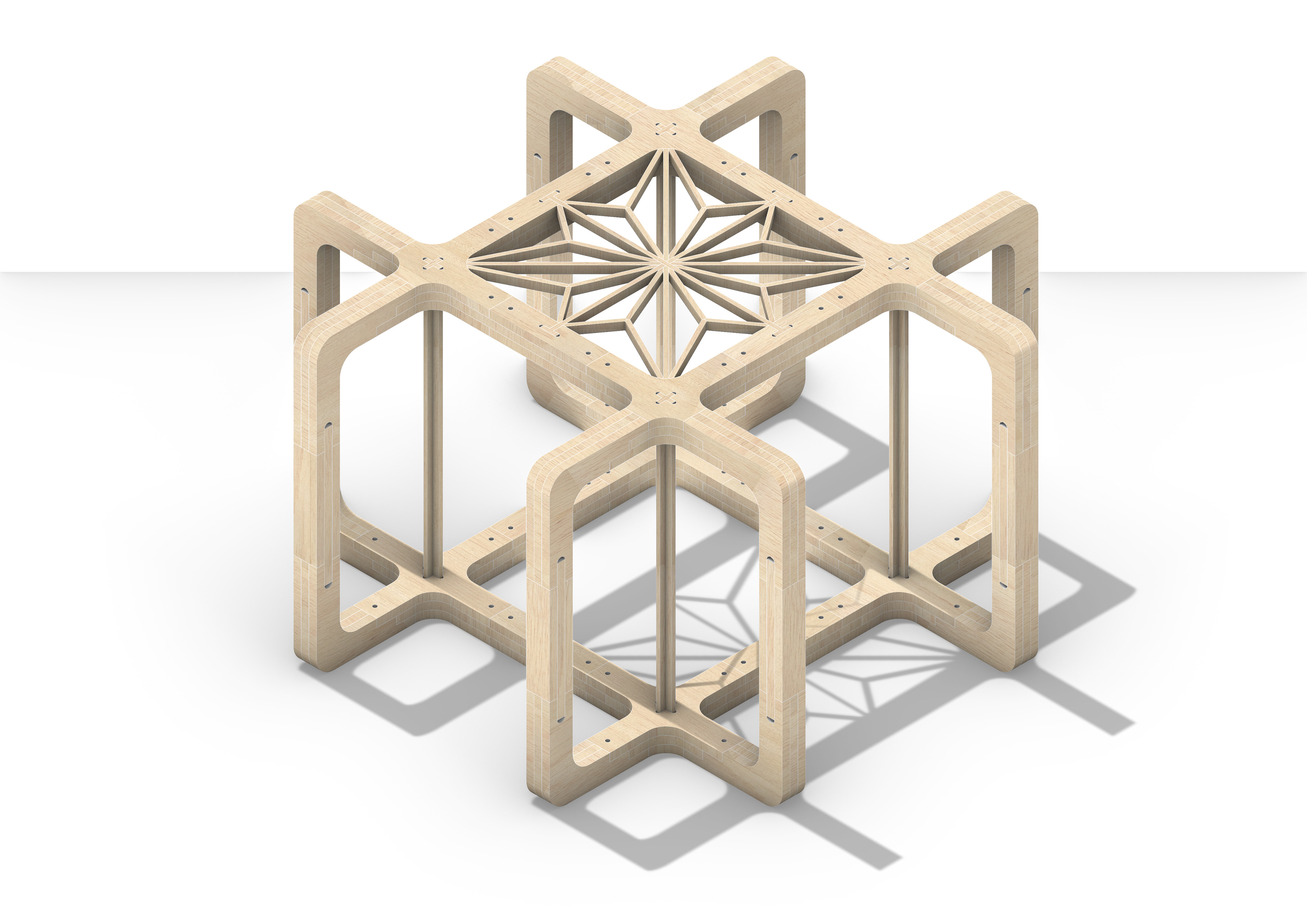

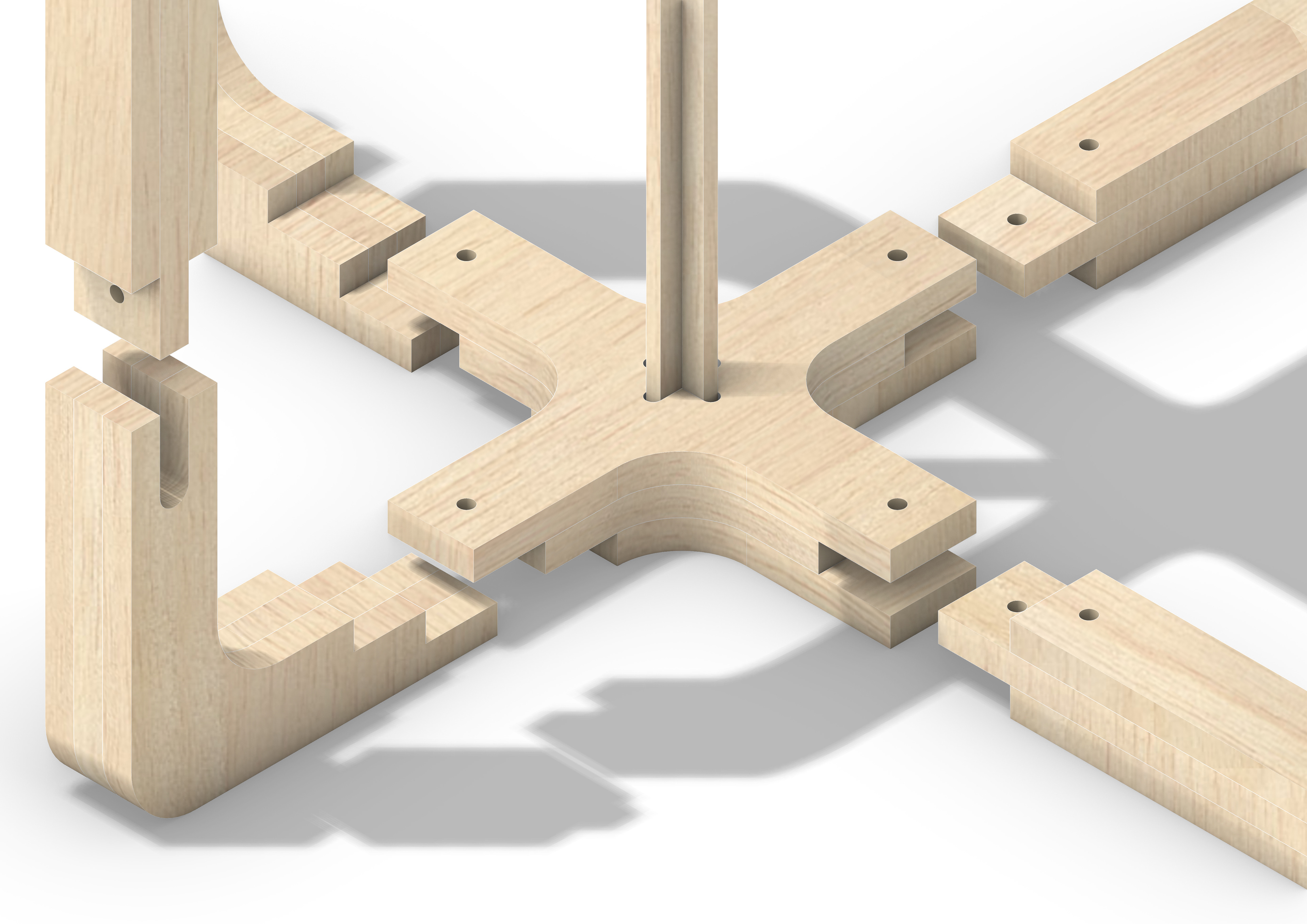

Final Render - Exploded Node
Final Render - Exploded Node

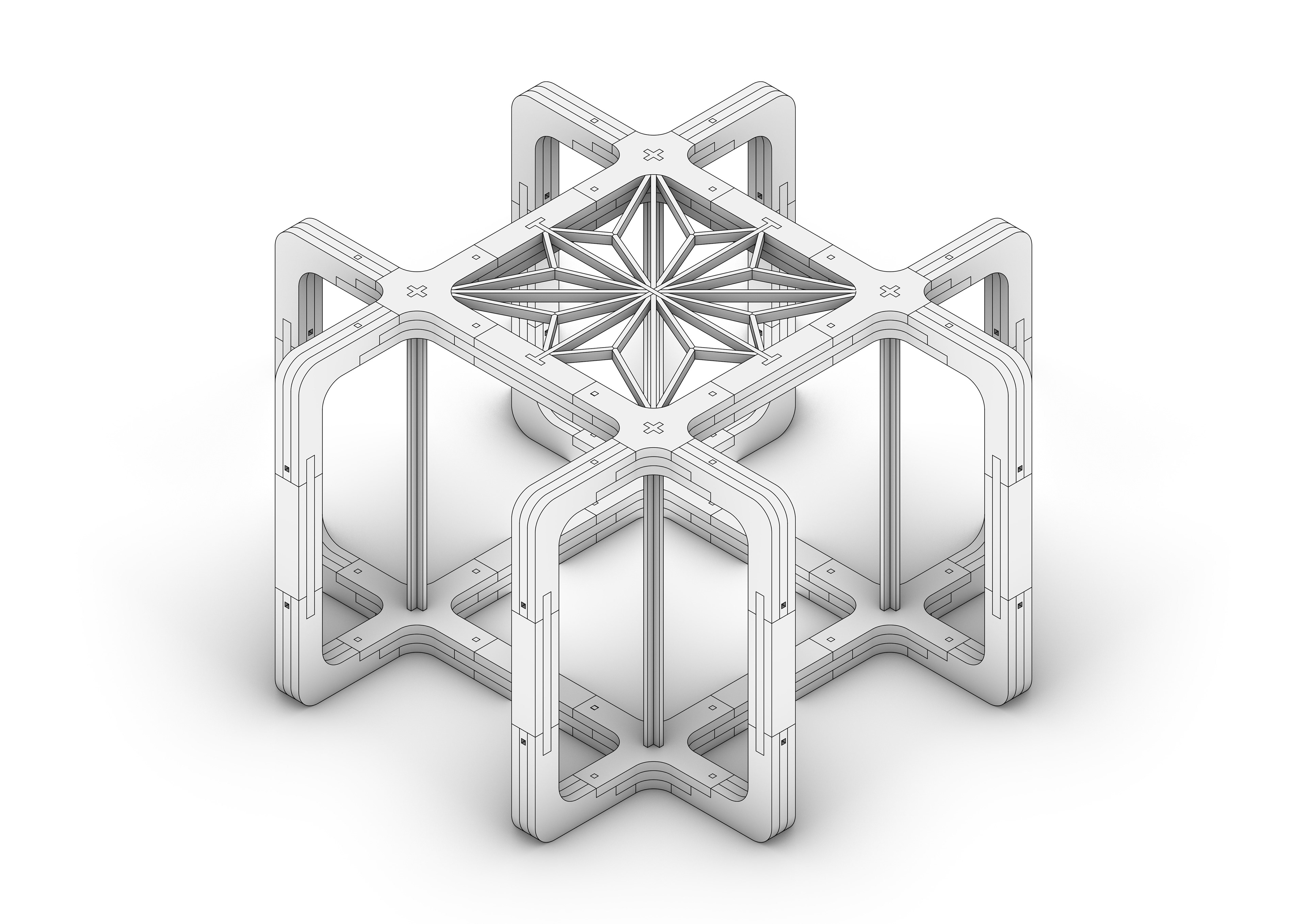

Final Render - Finał Design
Final Render - Finał Design
Final Render - Attachment
Final Render - Attachment
