Illustrative Section
Brief
The concept of my design within the loving community in Ahmedabad was to create a space where boundaries are broken, people come together, and a strong connection to the environment. These form the key drivers within the project, whether its protecting and working alongside existing trees or tackling problems such as flooding which occurs in the monsoon seasons. Therefore This has been strategically implemented at the points where the water would be running down from the canal, down the individual streets and under the plinth of the buildings. This solves a problem which the entire community faces.
Skills
Hand-Drawing Skills
AutoCAD
Sketchup
Photoshop
Research

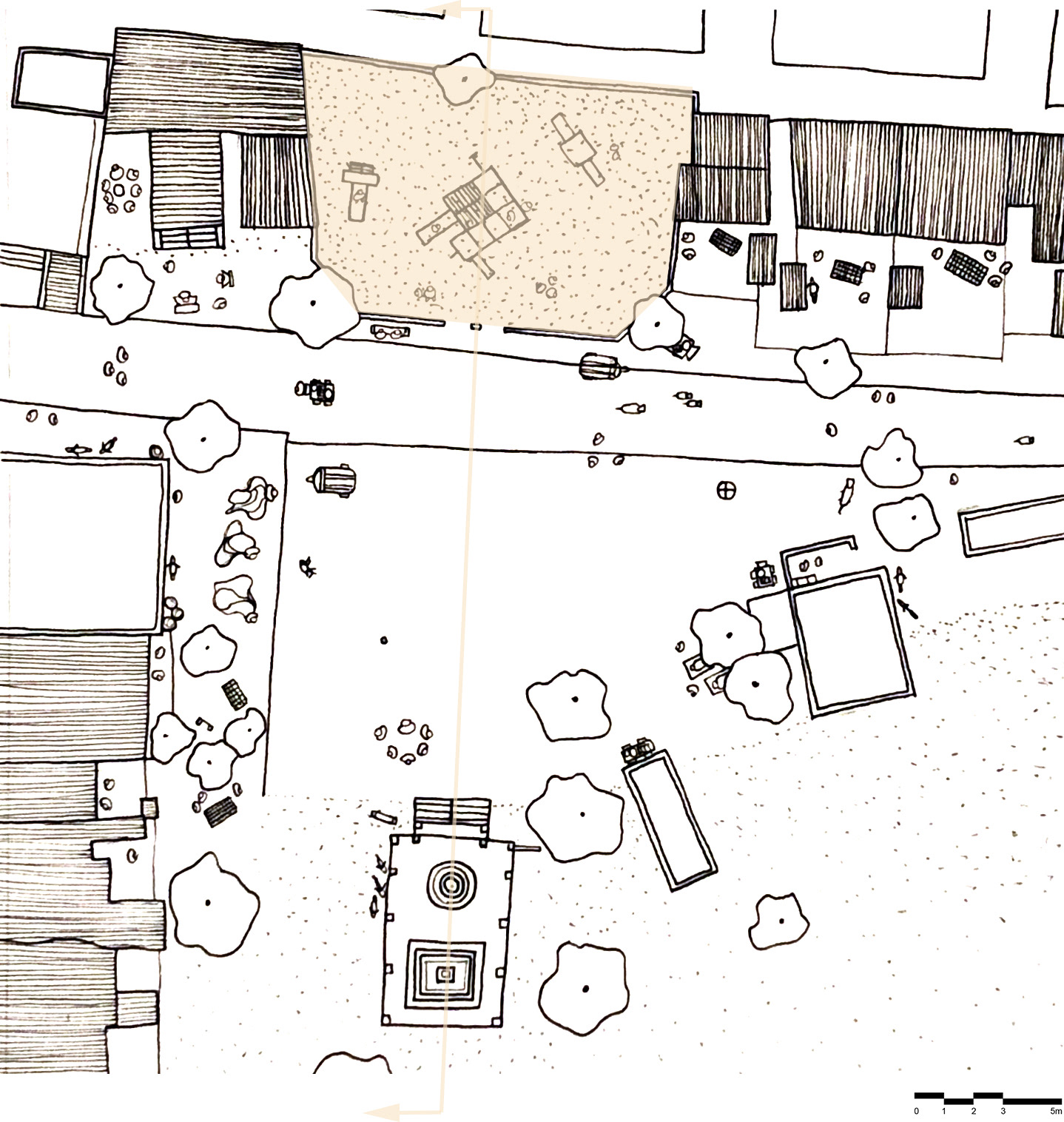

Site Option 1

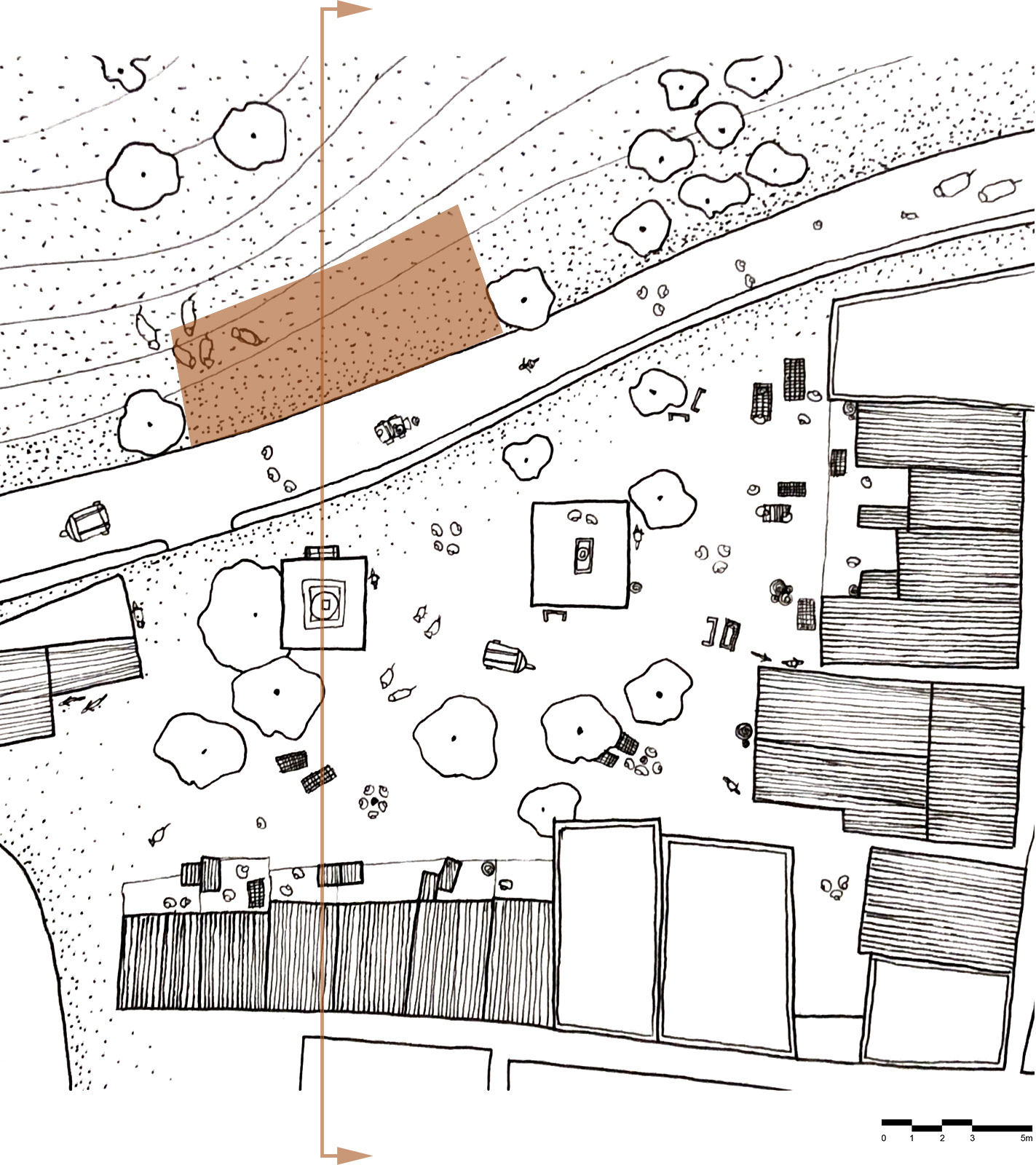

Site Option 2
Site Option 3

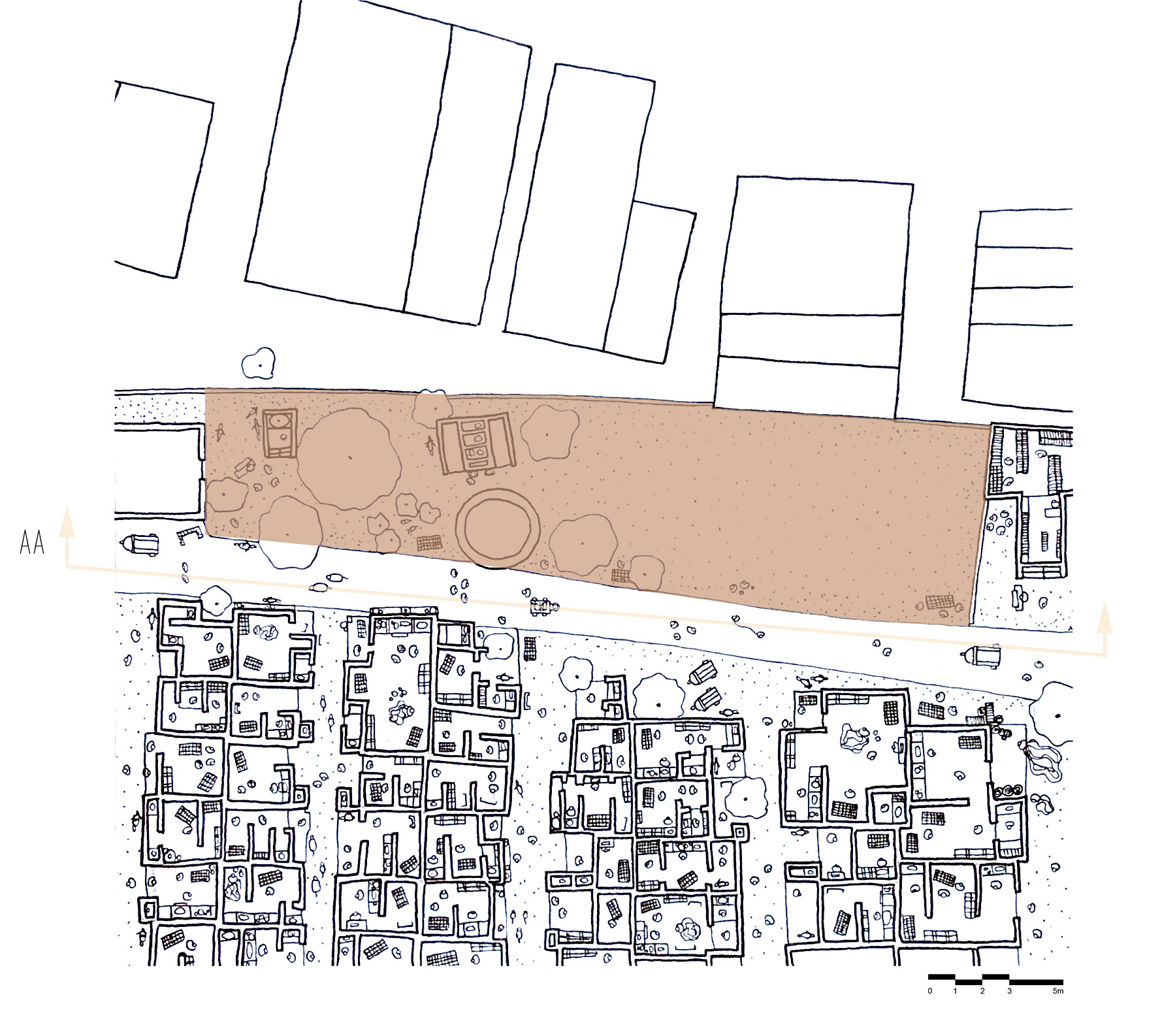

Proposal

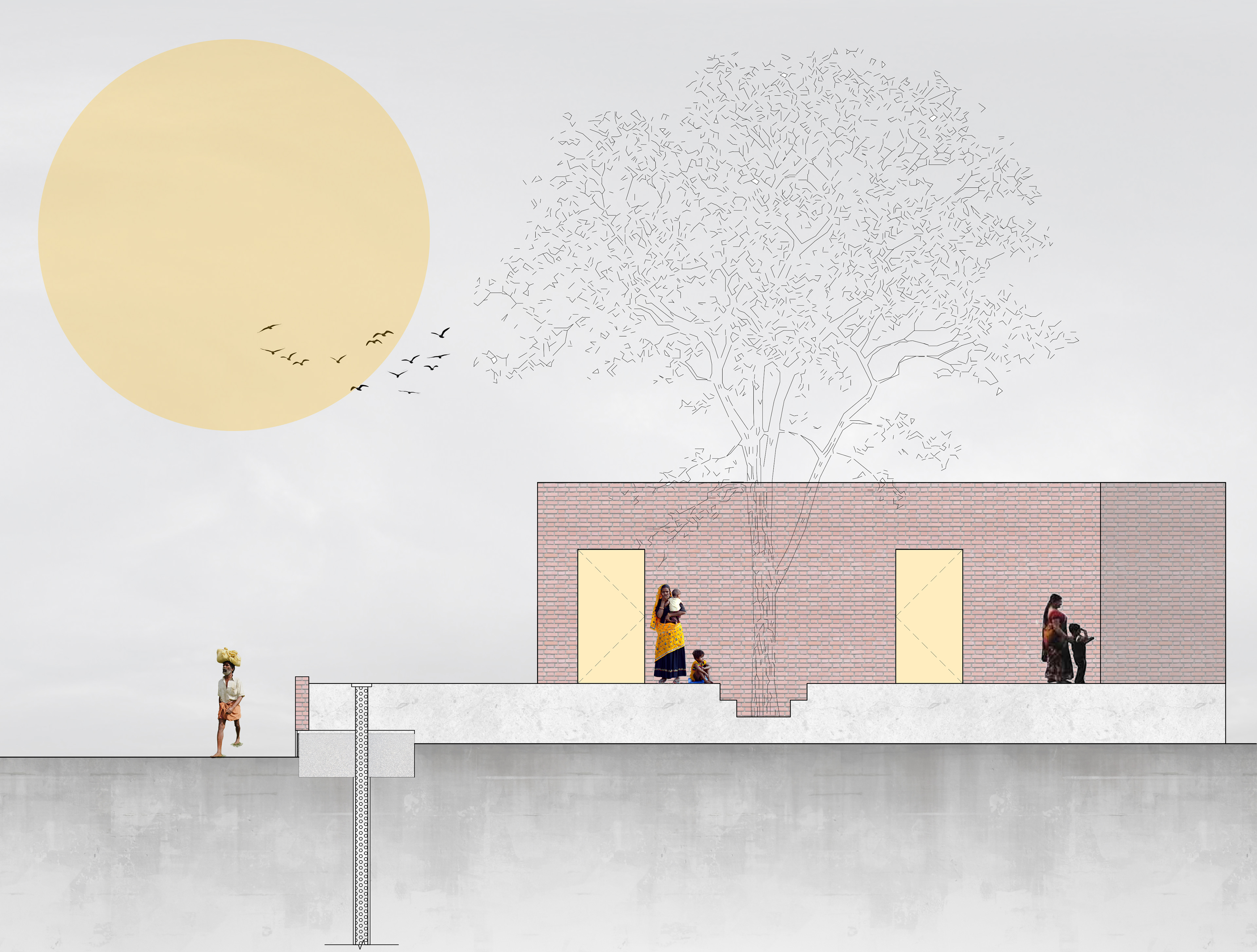

Section A-A

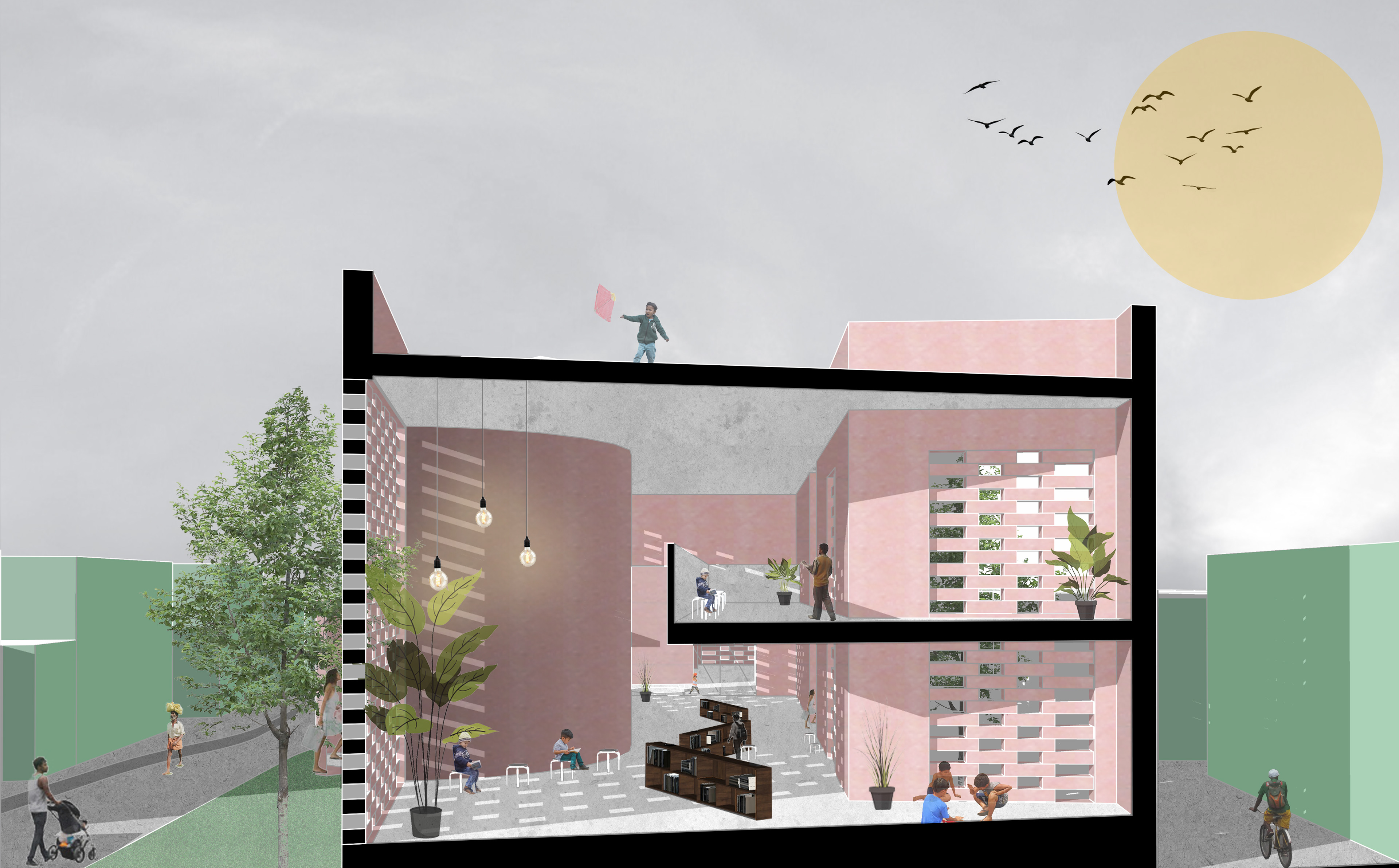

Illustrative Section B-B

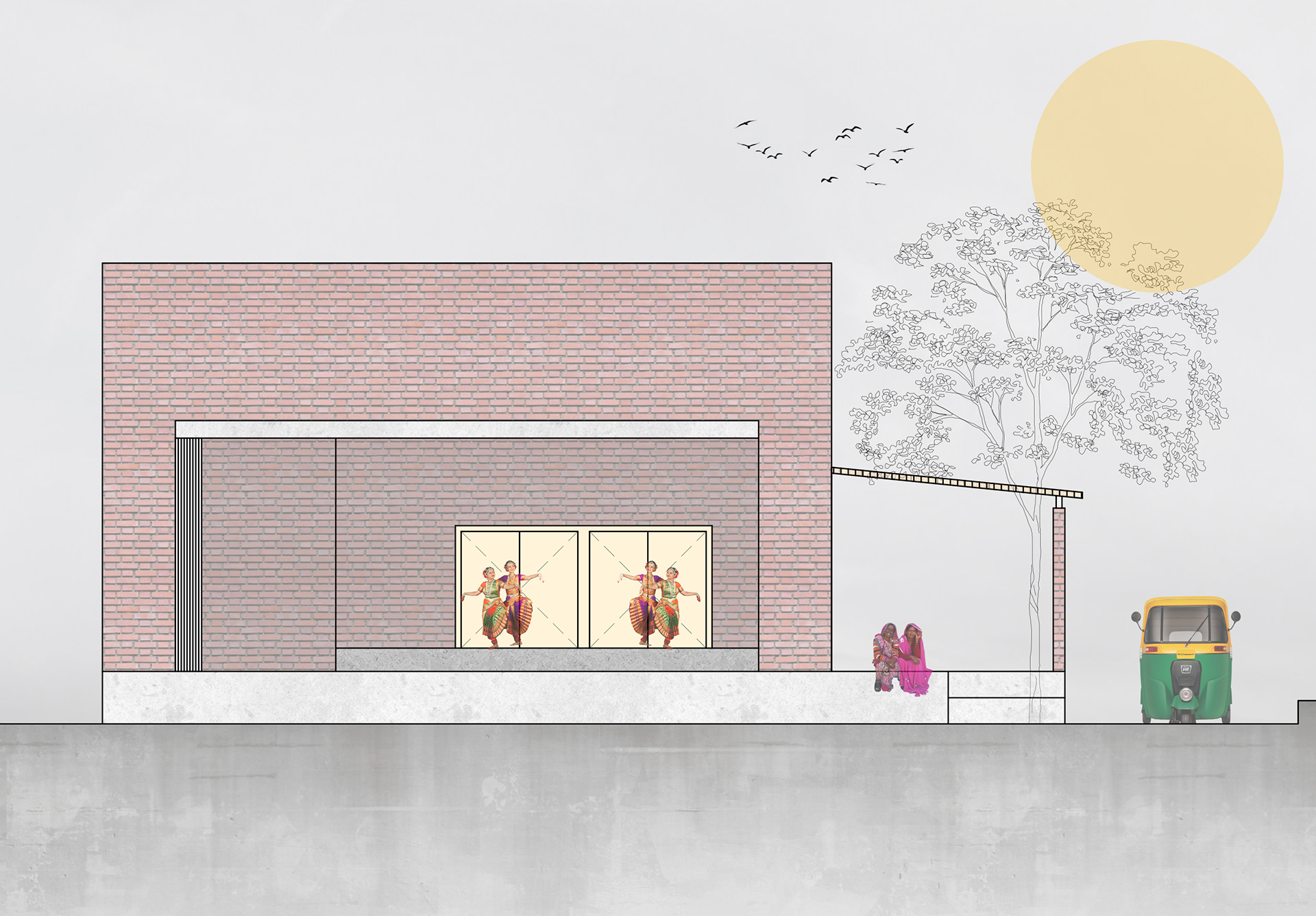

Section C-C

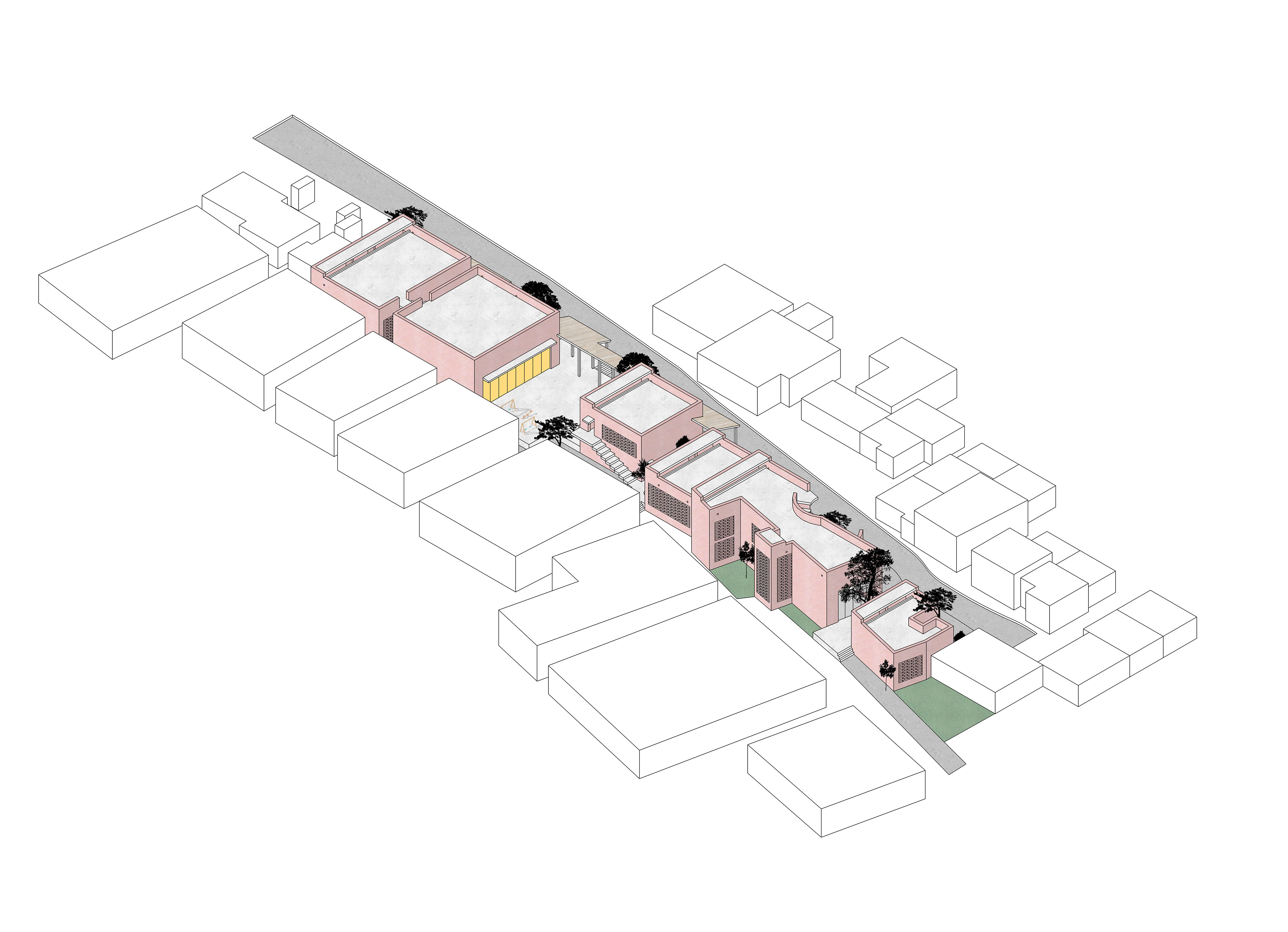

Front Axonometric View

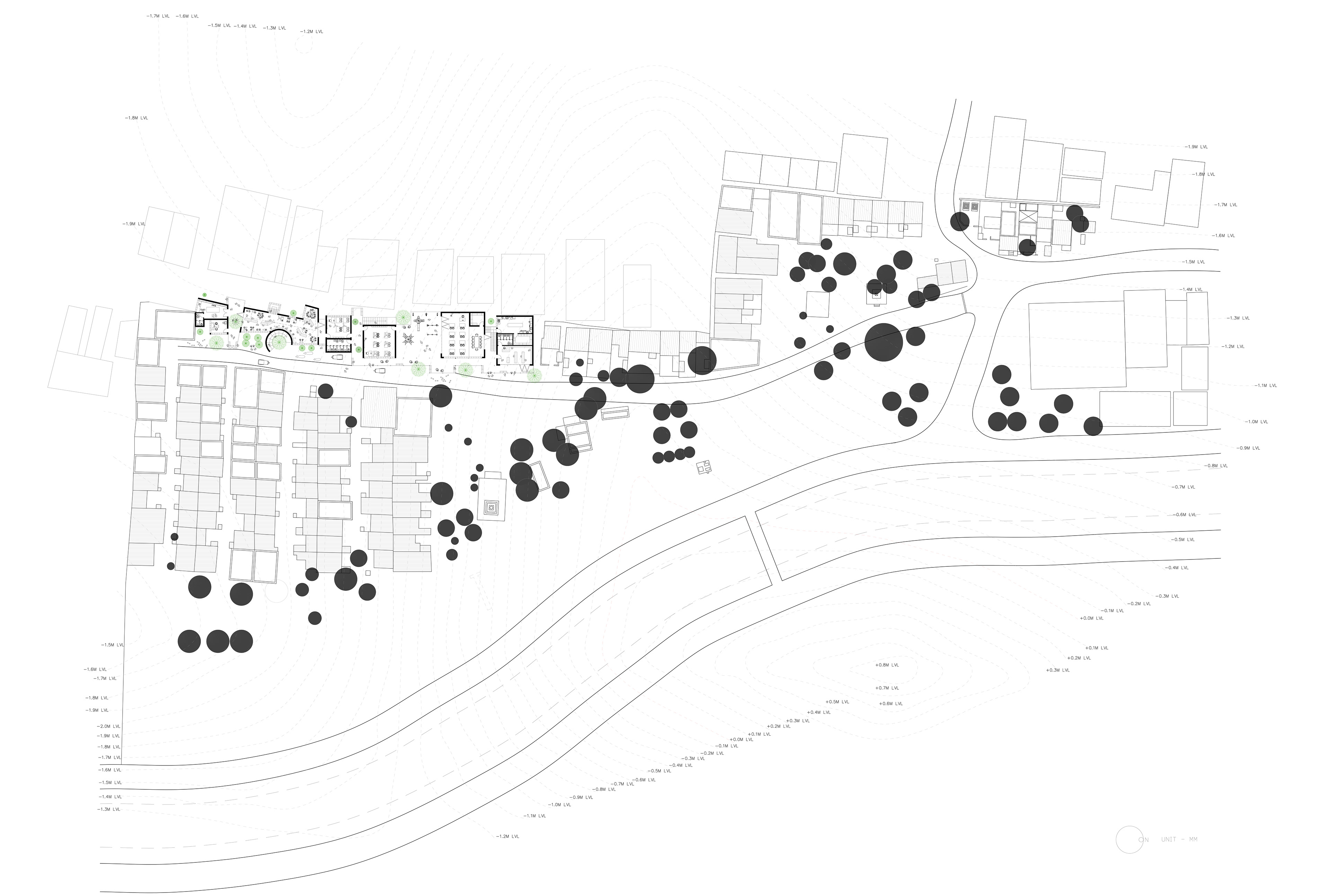

Masterplan

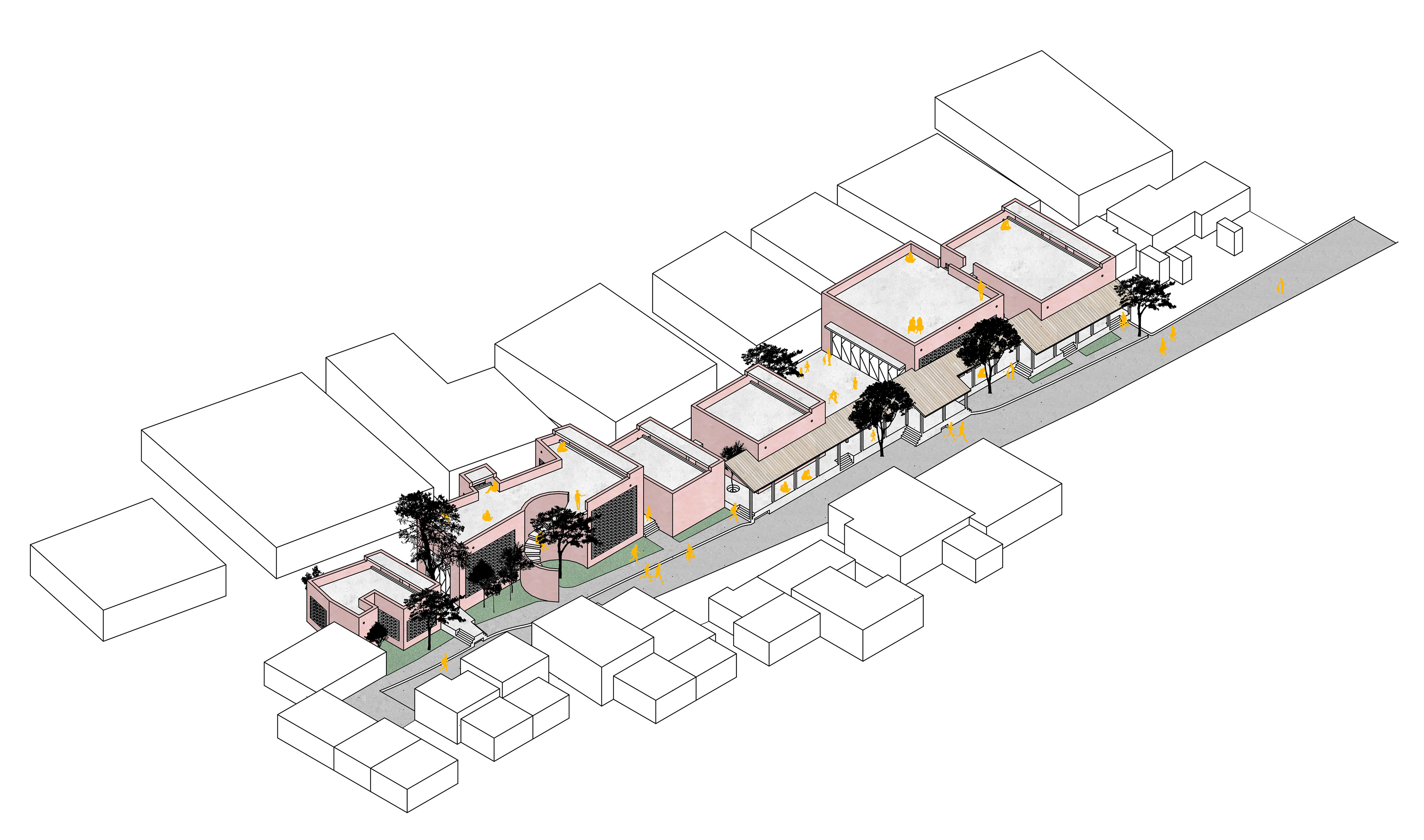

Back Axonometric View

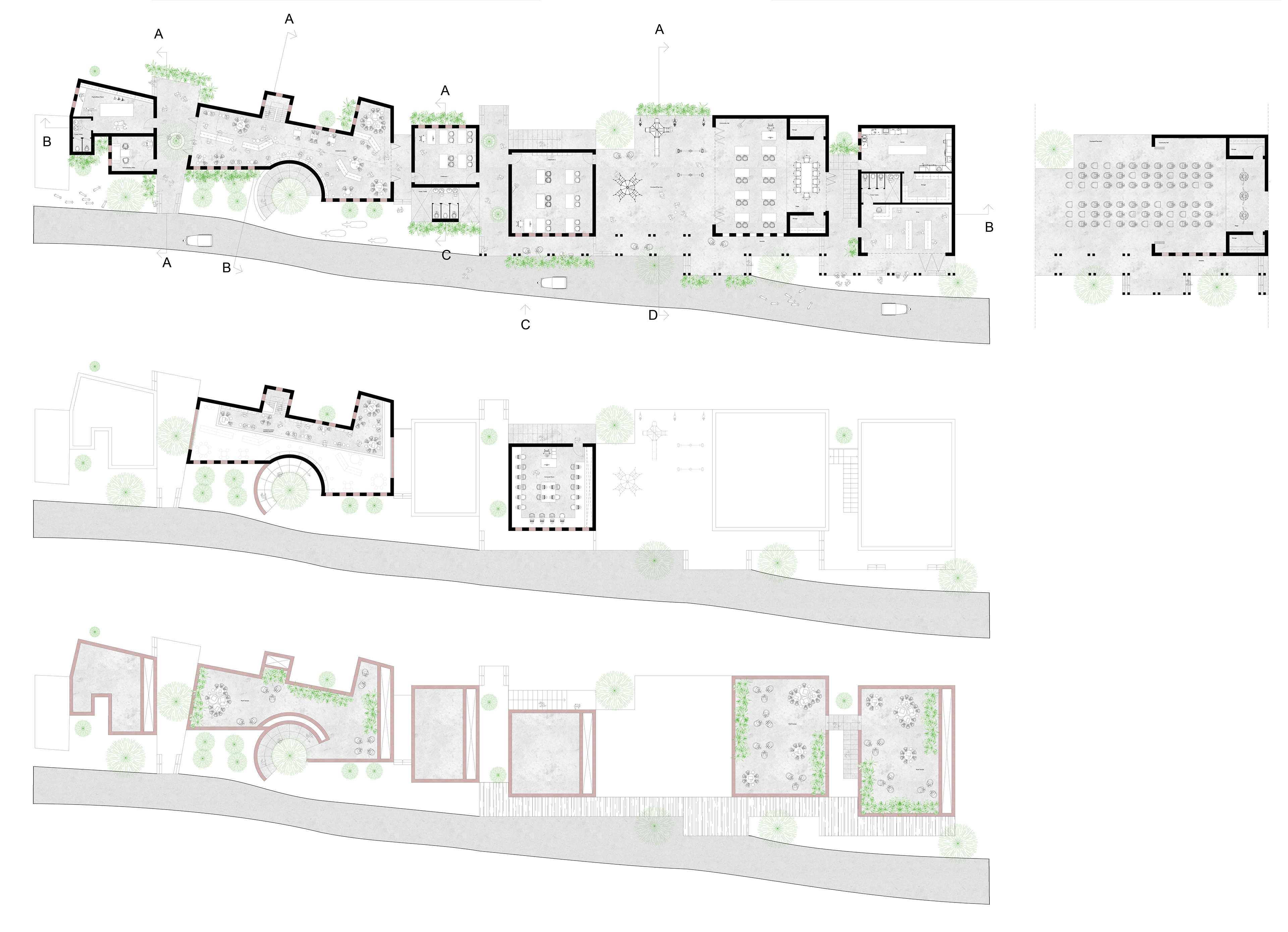

Ground Floor, Mezzanine Floor & Roof Plan
